SuperCycler – High Performance PCR Thermal Cycler

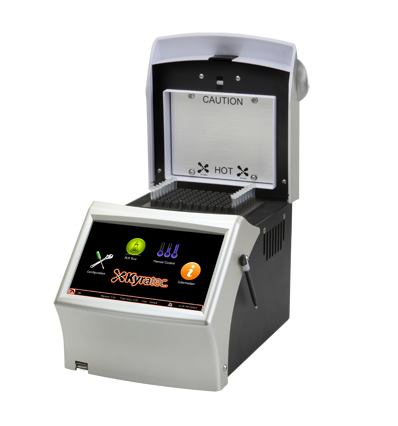

SuperCycler Trinity – High Performance PCR Thermal Cycler
Looking for a reliable, fast, and precise PCR cycler for your laboratory? The SuperCycler Trinity Series delivers state-of-the-art thermal cycling technology with unmatched accuracy and flexibility. Designed for molecular biology, genetics, diagnostics, and research applications, it ensures optimal conditions for DNA amplification, qPCR, and other PCR-based experiments.
The SuperCycler Trinity Series is a research use only cutting-edge thermal cycling system, designed for precision, flexibility, and ease of use in modern laboratories. Equipped with advanced Trinity thermal engine technology, it offers superior performance for PCR applications in research and diagnostics.
Why Choose SuperCycler?
Advanced Trinity Thermal Engine
- Three independent sets of peltiers, sensors, and controllers.
- Ramp rates exceeding 5°C per second with minimal temperature variation.
- Available in three configurations:
- Uniblock – Single zone
- Gradient* – Up to 24°C thermal gradient
- TripleZone – Three independent zones in a 96-well format
Compact & Space-Saving Design
- Footprint: 18 × 28.5 × 19 cm
- Weight: Only 5.5 kg – perfect for flexible lab environments.
User-Friendly Touchscreen Interface
- 7” widescreen color display with intuitive navigation.
- Easy profile setup with Manual Editor or Quickstart Wizard.
- Real-time thermal graphing & vivid run monitoring.
- Unlimited free software upgrades via web download.
Evaporation Control
- Heated lid with applied pressure ensures condensation control.
- Eliminates the need for oil or wax overlays.
Smart Lab Features
- Evaporation Control – Heated lid design removes need for oil/wax overlays.
- Auto Restart – Continues run after power interruptions.
- Pause & Resume – Flexible control during experiments.
- User Accounts – Store profiles for up to 99 users.
- USB Connectivity – Transfer protocols, save run reports, connect peripherals.
Specifications
- Temperature Range: 4°C – 99°C
- Accuracy: ±0.5°C (typically < ±0.1°C at 60°C)
- Uniformity: ±0.3°C within 30 seconds
- Resolution: 0.1°C increments
- Heating/Cooling Rate: 5°C/sec (typical), 7°C/sec (peak)
- Sample Capacity: 96 wells (0.2 mL tubes, strips, or plates)
- Reaction Volume: 5 – 60 μL
- Power: 100–240 VAC, auto-sensing
Included Accessories
- Power cable
- User manual
- Touch screen stylus
Ordering Information
- SC300T – TripleZone
- SC300G – Gradient* (selected regions only)
- SC300U – Uniblock
